Products · 09

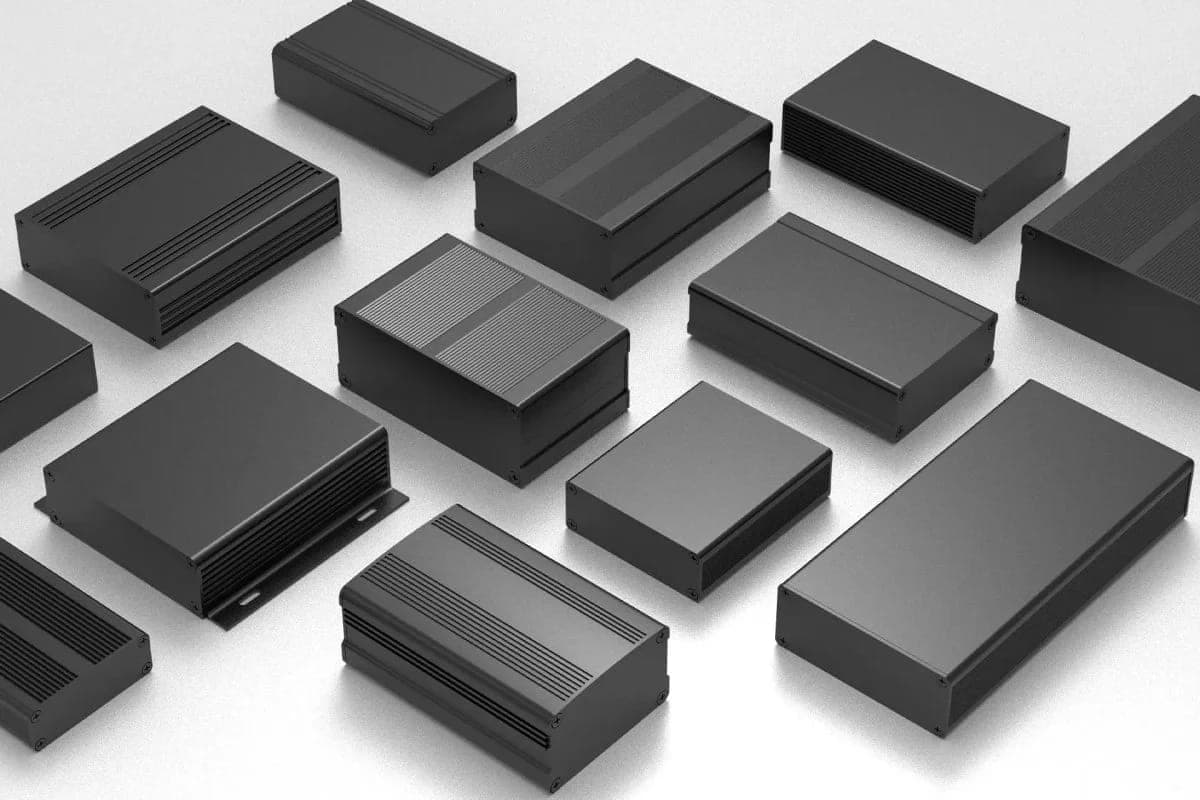

Electronic enclosure profiles
One-piece extruded housings machined for ports, cut-outs and end plates — ready for the boards to slide in.
01Have these ready
Six things that turn a slow quote into a fast one.
02Where it's used

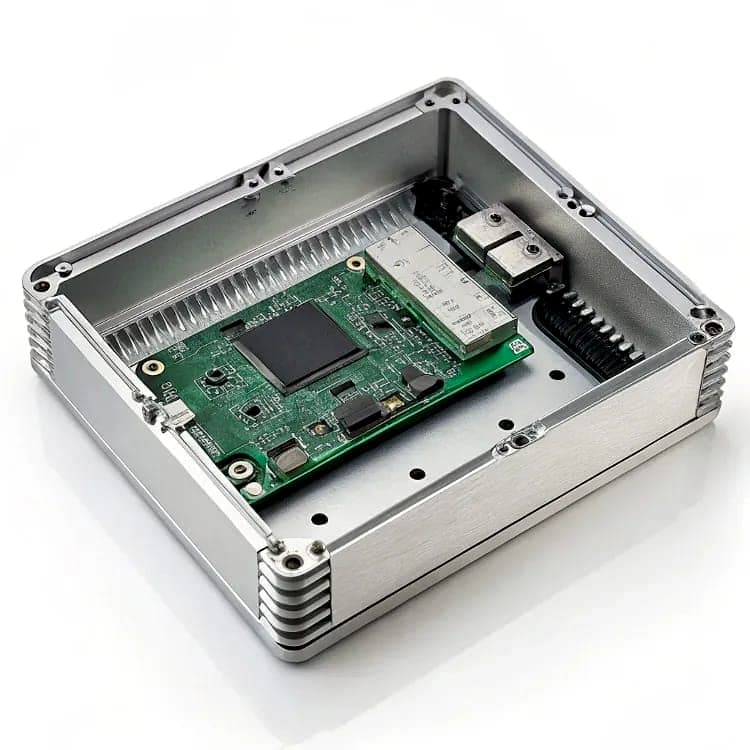

Instrument bodies
Controller, driver and instrument housings with connector openings machined.

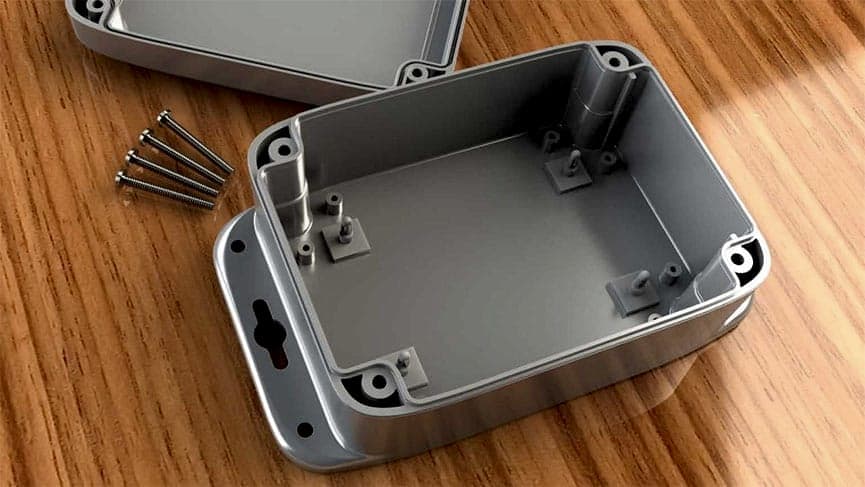

Power enclosures
Cases for supplies, converters and electrical assemblies, finished and marked.

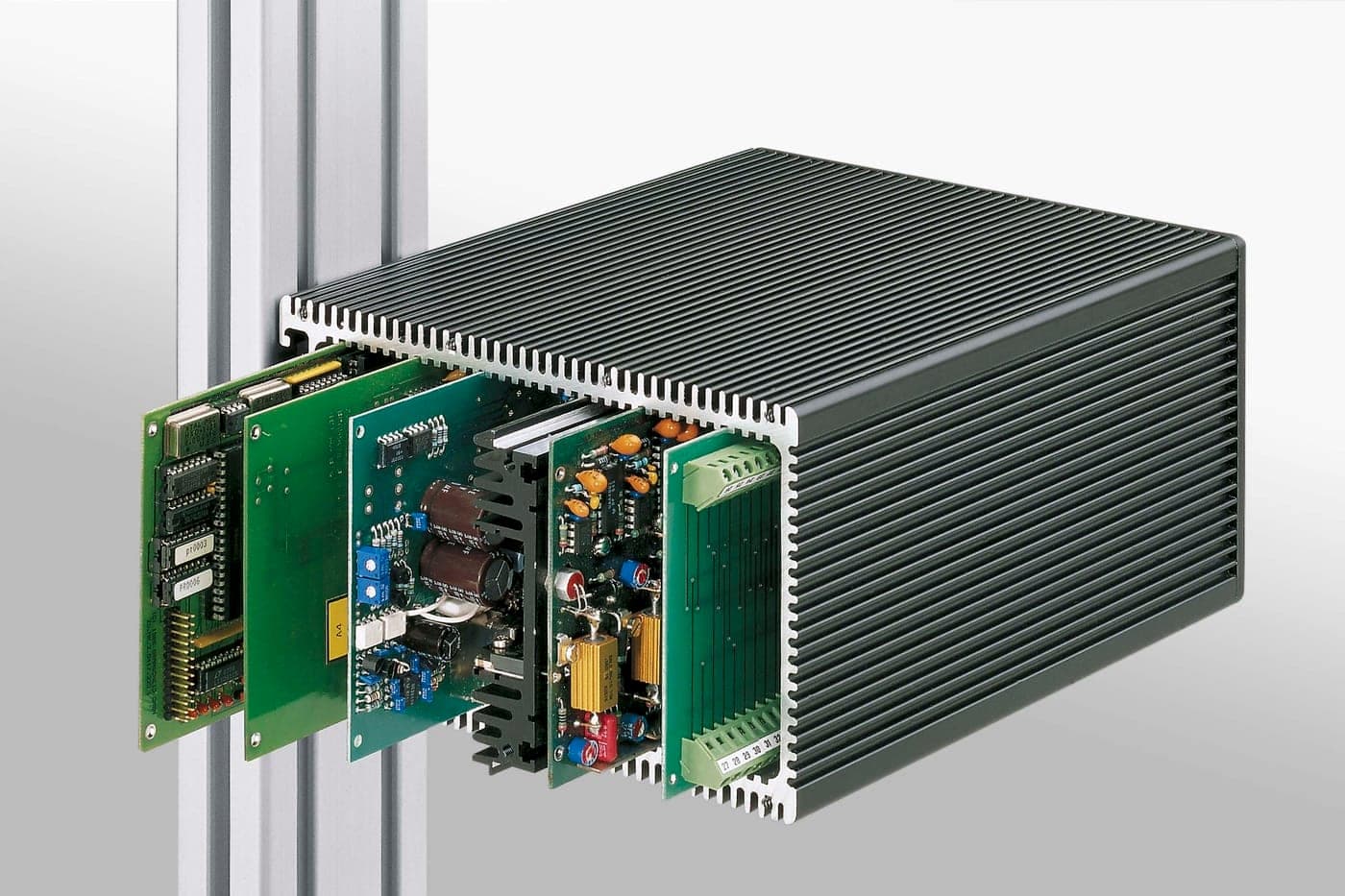

PCB carriers
Internal guide slots extruded to your board pitch, end plates machined to suit.
03Specifications
| Parameter | Working range |
|---|---|
| Alloy grades | 6063 / 6060 |
| Temper | T5 / T6 |
| Profile length | up to 12,000 mm / cut-to-length |
| Wall thickness | from 0.7 mm (0.3 mm on small sections →) |
| Board guide slots | to your PCB spacing |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Mill / Anodized |
04Three confirmations before production
Can we make it?
Section, wall and any fine features are read against the press — small-section capability included.
Machining & finish agreed
End machining, cut-outs, ports and the anodize or mill surface are all itemised in the quote.
Proof before shipping
Cavity dimensions are gauged so the boards fit, with material or finish certificates as required.
Machining and surface treatment happen here, in the same plant — CNC & machining · Finishing.
05Quality & certification
ISO 9001:2015 / GB/T 19001-2016
Quality Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing)
- Certificate no.
- 21826Q00612R101
- Valid until
- 28 Jun 2029
ISO 14001:2015 / GB/T 24001-2016
Environmental Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing) and related environmental management activities
- Certificate no.
- 21826E00416R101
- Valid until
- 28 Jun 2029
Issued by Shanghai Sailway Certification Co., Ltd. — accredited under CNAS / IAF MLA.
These certificates are held by our manufacturing plant.
Full stamped certificates are available on request. Numbers can be verified with the issuer or through CNAS.
06Frequently asked questions
Why choose an extruded housing over sheet metal or plastic?
One seamless body, board guides formed into the metal, stiffness, heat spreading and EMI shielding for free — that combination is hard to fold or mould. Where the device runs cool and unshielded, sheet or plastic may still win on cost; describe yours and the comparison comes back honest.
Ports, cut-outs and end plates — who machines those?
We do, in the same building where the profile was extruded. Openings marked on the drawing come back machined, and the anodize is sequenced around them, so the enclosure ships assembly-ready.
How compact can the section be?
This category leans directly on our small-section expertise — down to a 2 mm circumscribing circle and 0.3 mm walls on suitable geometry. If your housing is tight, that is a reason to talk to us, not a problem.
Can the enclosure be made weatherproof?
Ingress protection is a system property — gasket, end caps and joints together, not the extrusion alone. Name the rating you need and we confirm the grooves and cap fits the profile must carry to reach it.
